0.6/1kV PVC insulated power cable

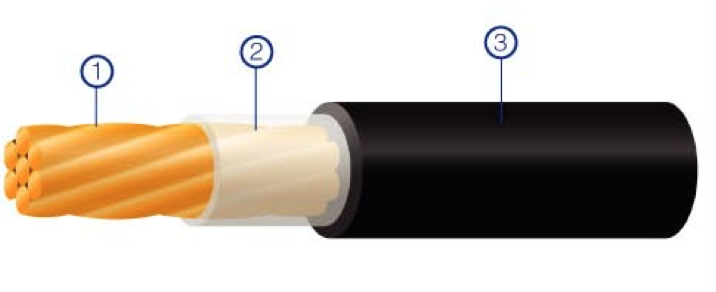

1.导体Conductor 2.绝缘 Insulation 3.护套Sheath
|
I•·标准：GB/T 12706 idt IEC60502。 Standard：GB/T 12706 idt IEC60502。
I•·用途：适用于交流额定电压 0 6/ 1kV(Uo／U)及以下输配电线路。
Application: Suitable for AC rated voltage up to 0 6/1kV (Uo/U) transmission and distribution lines.
I•·使用特性 Characteristics：
1.电缆的最高长期工作温度为70℃。
Max. continuous operating temperature: 70℃.
2.敷设时环境温度：≥0℃。
The temperature for cable installation: ≥0℃。
3.短路时(最长持续时间不超过5秒）,电缆的最高温度:160℃。
Short-circuit(the longest duration not exceeding 5 seconds), the maximum temperature of the cable: 160℃。
4.电缆的允许弯曲半径：
Permissible bending radius of cables:
单芯电缆：20d,mm.
Single-core cable：20d,mm.
多芯电缆：15d,mm
multi-core cable：15d,mm.
d--电缆的实际外径，mm.
d--Actual outer diameter of the cable，mm.
I•·产品性能 Product performance：
1. 20℃导体电阻符合GB/T 3956的要求。
The 20℃ conductor resistance: according to the requirements of GB/T 3956.
2. 交流电压试验：3.5kV/5min电缆不击穿。
AC withstanding voltage test 3.5kV/5min cable without breakdown.
|
I•·型号规格Type & Specification
|
型号
Type
|
规格 Specification
|
名称
Description
|
用 途
Application
|
|
|
芯数
No. of cores
|
截面mm2
Cross section
|
|||
|
VV
|
1
|
1.5-630
|
聚氯乙烯绝缘
聚氯乙烯护套电力电缆
PVC insulated and PVC sheathed power cable
|
敷设在室内、隧道及管道中。
For laying indoors, tunnels and pipelines。
|
|
2
|
1.5～150
|
|||
|
3
|
1.5-400
|
|||
|
3 + 1
|
1.5～400
|
|||
|
4
|
2.5～400
|
|||
|
3 + 2
4 + 1
|
1.5-240
|
|||
|
5
|
2.5～240
|
|||
|
VV22
|
2
|
4.0- 150
|
聚氯乙烯绝缘钢带铠装
聚氯乙烯护套电力电缆
PVC insulated steel tape armored PVC sheathed power cable
|
敷设在室内，电缆沟、管道、直埋
等能承受较大机械外力等固定场合。
For laying indoors, in cable trench, pipeline, buried, can bear external mechanical forces and other fixed occasions.
|
|
3
|
4.0-400
|
|||
|
3 + 1
|
1.5-400
|
|||
|
4
|
2.5～400
|
|||
|
3 + 2
|
1.5 -240
|
|||
|
4 + 1
|
1.5～240
|
|||
|
5
|
2.5-240
|
|||
|
VV32
|
2
|
4 .0-150
|
聚氯乙烯绝缘钢丝铠装
聚氯乙烯护套电力电缆
PVC insulated steel wire armored PVC sheathed power cable
|
敷设在高落差、竖井，可承受一定的机械拉力等场合。
For laying in high drop, cenote, and other occasions can withstand certain mechanicaltension.
|
Ii· 规格和结构尺寸Specifications and structure size
1.0.6/1kV 聚氯乙烯绝缘电力电缆 0.6 /1kV PVC insulated power cable
|
规格
Specification
芯数 x 截面
Cores x cross section
(mm2)
|
绝缘厚度
Insulation Thickness
(mm)
|
电缆近似外径
Approximate overall diameter of cable(mm)
mm
|
电缆近似重量
Approximate cable weight
(kg/km)
|
||||
|
VV
|
VV22
|
VV32
|
VV
|
VV22
|
VV32
|
||
|
1 ×1.5
1 ×1.5*
1 ×2.5
1 ×2.5*
1 ×4
1 ×4 *
1 ×6
1 ×6*
1 × 10
1 ×16
1 ×25
1 ×35
1 ×50
1 ×70
1 ×95
1 ×120
|
0.8
0.8
0.8
0.8
1.0
1.0
1.0
1.0
1 0
1.0
1.2
1.2
1.4
1.4
1.6
1.6
|
5.8
6.0
6.2
6.5
7. 1
7.4
7.6
8.0
89
10.0
11.7
12.8
13.8
15.5
17.8
19.2
|
－－－
－－－
－－－
－－－
|
－－－
－－－
－－－
－－－
－－－
－－－
－－－
|
44
45
56
59
73
76
95
98
142
204
305
403
534
729
970
1207
|
－－－
－－－
|
－－－
－－－
－－－
|
|
规格
Specification
芯数 x 截面
Cores x cross section
(mm2)
|
绝缘厚度
Insulation Thickness
(mm)
|
电缆近似外径
Approximate overall diameter of cable
(mm)
|
电缆近似重量
Approximate cable weight
(kg/km)
|
||||
|
|
|
VV
|
VV22
|
VV32
|
VV
|
VV22
|
VV32
|
|
1 × 150
|
1.8
|
21.4
|
－－－
－－－
－－－
15.2
|
－－－
－－－
16.9
|
1507
|
－－－
－－－
－－－
347
|
－－－
－－－
－－－
552
|
|
1 × 185
|
2.0
|
23.5
|
1853
|
||||
|
1 ×240
|
2.2
|
26.4
|
2380
|
||||
|
1 ×300
|
2.4
|
29.0
|
2949
|
||||
|
1 ×400
|
2.6
|
32.4
|
3892
|
||||
|
1 ×500
|
2.8
|
36.3
|
4850
|
||||
|
1 × 630
2 ×1.5
2 ×1.5*
2 × 2.5
2 ×2.5
2 × 4
|
2.8
0.8
0.8
0.8
0.8
1.0
|
40.1
9.8
10.2
10.6
11.1
12.4
|
6078
116
120
146
154
202
|
||||
|
2 × 4*
|
1.0
|
13.0
|
15.8
|
17.5
|
210
|
363
|
576
|
|
2 ×6
|
1.0
|
13.4
|
16.2
|
17.9
|
252
|
410
|
630
|
|
2 ×6
|
1.0
|
14.1
|
16.9
|
18.6
|
262
|
427
|
660
|
|
2 ×10
|
1.0
|
16.6
|
19.4
|
21.1
|
374
|
567
|
839
|
|
2 ×16
|
1.0
|
18.7
|
21.5
|
23.9
|
507
|
724
|
1158
|
|
2 ×25
|
1.2
|
22.2
|
25.0
|
27.4
|
756
|
1012
|
1525
|
|
2 × 35
|
1.2
|
24.4
|
27.2
|
29.6
|
964
|
1246
|
1811
|
|
2 × 50
|
1.4
|
26.3
|
29.3
|
31.9
|
1258
|
1575
|
2197
|
|
2 ×70
|
1.4
|
29.9
|
32.7
|
36.7
|
1700
|
2044
|
3012
|
|
2 × 95
|
1.6
|
34.4
|
37.8
|
41.2
|
2264
|
2706
|
3787
|
|
2 × 120
|
1.6
|
37.4
|
42.0
|
44.2
|
2770
|
3651
|
4421
|
|
2 × 150
|
1.8
|
41.6
|
46.4
|
496
|
3438
|
4435
|
5683
|
|
3 × 1.5
3 × 1.5*
|
0.8
0.8
|
10.3
10.6
|
－－－
|
－－－
|
137
148
|
－－－
|
－－－
|
|
3 × 2.5
|
0.8
|
11.1
|
|
|
183
|
|
|
|
3 ×2.5*
|
0.8
|
11.7
|
|
|
193
|
|
|
|
3 × 4
|
1.0
|
13 0
|
15.8
|
17 5
|
260
|
413
|
627
|
|
3 ×4*
|
1.0
|
13.7
|
16.5
|
18.2
|
270
|
431
|
655
|
|
3 ×6
|
1.0
|
14.1
|
16.9
|
18.6
|
336
|
501
|
733
|
|
3 ×6*
|
1.0
|
14.9
|
17.7
|
19.4
|
348
|
522
|
766
|
|
3 ×10
|
1.0
|
17.5
|
20.3
|
22.0
|
513
|
716
|
1003
|
|
3 × 16
|
1.0
|
19.8
|
22.6
|
25.0
|
707
|
936
|
1394
|
|
3 × 25
|
1.2
|
23.5
|
26.3
|
28.7
|
1044
|
1316
|
1858
|
|
3 ×35
|
1.2
|
25.9
|
28.7
|
31.3
|
137 1
|
1670
|
2282
|
|
3 × 50
|
1.4
|
28.0
|
31.4
|
34.6
|
1802
|
2168
|
3057
|
|
3 x 70
|
1.4
|
31.8
|
35.0
|
38.8
|
2417
|
2816
|
3853
|
|
3 x 95
|
1.6
|
36.8
|
41.0
|
43.6
|
3242
|
4070
|
4863
|
|
3 x 120
|
1.6
|
40.0
|
44.6
|
48.0
|
3958
|
4900
|
6123
|
|
3 ×150
|
1.8
|
44.5
|
49.5
|
52.9
|
4938
|
6030
|
7395
|
|
3 ×185
|
2.0
|
49.0
|
54.0
|
57.4
|
6042
|
7238
|
8727
|
|
3 ×240
|
2.2
|
55.2
|
60.6
|
64.0
|
7734
|
9133
|
10809
|
|
3 ×300
|
2.4
|
60.8
|
66.4
|
70.3
|
9616
|
11179
|
12980
|
|
3 ×400
|
2.6
|
68.1
|
73.9
|
78.8
|
12620
|
14401
|
17340
|
|
3×2.5 + 1 ×1.5
|
0.8/ 0.8
|
11.8
|
14.6
|
16.3
|
214
|
353
|
547
|
|
3x2.5*+1x1.5*
|
0.8/ 0.8
|
12.5
|
15.3
|
17.0
|
224
|
370
|
578
|
|
3×4 + 1x2.5
|
1.0 /0.8
|
13.6
|
16.4
|
18.1
|
300
|
460
|
685
|
|
3 x 4* + 1 x 2.5*
|
1.0 I 0.8
|
14.3
|
17.1
|
18.8
|
313
|
481
|
716
|
|
3x6+1x4
|
1.0 /1.0
|
15.1
|
17.9
|
19.6
|
400
|
576
|
824
|
|
3x6+ 1 x4*
|
1.0 /1.0
|
15 9
|
18.7
|
20.4
|
414
|
600
|
861
|
|
3x10 + 1 x6
|
1.0 I 1.0
|
18.3
|
21.1
|
235
|
589
|
802
|
1228
|
|
3x16+ 1 x 10
|
1.0 I 1.0
|
21 0
|
23.8
|
26.2
|
829
|
1072
|
1559
|
|
3×25 + 1 x 16
|
1.2 I 1.0
|
24.8
|
27.6
|
30.2
|
1231
|
1517
|
2103
|
|
3×35+ 1×16
|
1.2 I 1.0
|
26.9
|
29.7
|
32.3
|
1549
|
1858
|
2491
|
|
3×50+ 1×25
|
1.4 I 1.2
|
29.8
|
33.0
|
36.6
|
2091
|
2465
|
3423
|
|
3×70 + 1 ×35
|
1.4/ 1.2
|
33.8
|
37.0
|
40.6
|
2843
|
3264
|
4340
|
|
3×95+1x50
|
1.6 I 1.4
|
38.4
|
43.2
|
46.4
|
3758
|
4678
|
5845
|
|
3×120 + 1×70
|
1.6/ 1.4
|
42.1
|
47.3
|
50.7
|
4699
|
5756
|
7058
|
|
3 x 150 + 1x70
|
1.8 I 1.4
|
46.2
|
51.2
|
54.6
|
5689
|
6818
|
8229
|
0.6/ 1kV聚氯乙烯绝缘电力电缆 0.6 /1kV PVC insulated power cable
|
规格
Specification
芯数 x 截面
Cores x cross section
(mm2)
|
绝缘厚度
Insulation Thickness
(mm)
|
电缆近似外径
Approximate overall diameter of cable
(mm)
|
电缆近似重量
Approximate cable weight
(kg/km)
|
||||
|
VV
|
VV22
|
VV32
|
VV
|
VV22
|
VV32
|
||
|
3x 185 + 1x95
|
2.0/ 1.6
|
51.1
|
56.3
|
595
|
7042
|
8312
|
9840
|
|
3 x 240 + 1 x 120
|
2.2/ 飞 .6
|
57.3
|
62.9
|
66.3
|
9016
|
10491
|
12231
|
|
3×300+ 1 x 150
|
2.4/1.8
|
632
|
69.0
|
72.6
|
11144
|
12796
|
14640
|
|
3×400+ 1 ×185
|
2.6/2.0
|
70.6
|
76.0
|
80.7
|
14472
|
16243
|
19237
|
|
4 ×2.5
|
0.8
|
12.0
|
14.8
|
16.5
|
226
|
368
|
566
|
|
4 ×2.5'
|
0.8
|
12.6
|
15.4
|
17.1
|
238
|
387
|
595
|
|
4 ×4
|
1.0
|
14.1
|
16.9
|
18.6
|
324
|
489
|
722
|
|
4 x 4
|
1.0
|
14.9
|
17.7
|
19.4
|
336
|
510
|
755
|
|
4 x 6
|
1.0
|
15.4
|
18.2
|
19.9
|
415
|
595
|
847
|
|
4 x 6
|
1.0
|
16.2
|
19.0
|
20.7
|
429
|
619
|
886
|
|
4 x 10
|
1.0
|
19.1
|
21.9
|
24.3
|
637
|
858
|
1302
|
|
4 x 16
|
1.0
|
21.7
|
24.5
|
26.9
|
892
|
1142
|
1644
|
|
4 x 25
|
1.2
|
258
|
28.6
|
31.2
|
1334
|
1632
|
2242
|
|
4 x 35
|
1.2
|
28.6
|
31.6
|
342
|
1760
|
2103
|
2777
|
|
4 ×50
|
1.4
|
31.1
|
34.5
|
38.1
|
2365
|
2769
|
3768
|
|
4 ×70
|
1.4
|
35.4
|
40.2
|
42.4
|
3164
|
4020
|
4749
|
|
4 ×95
|
1.6
|
40.9
|
45.7
|
49 .3
|
4228
|
5202
|
6463
|
|
4 ×120
|
1.6
|
44.5
|
49.7
|
52.9
|
5221
|
6332
|
7675
|
|
4 ×150
|
1.8
|
49.7
|
54.7
|
58.1
|
6517
|
7728
|
9239
|
|
4 ×185
|
2.0
|
54.5
|
60.1
|
63.5
|
7953
|
9362
|
11025
|
|
4 ×240
|
2.2
|
61.7
|
67.1
|
70.5
|
10302
|
11854
|
13714
|
|
4 x 300
|
2.4
|
67.9
|
73.3
|
78.7
|
12721
|
14424
|
17306
|
|
4 x 400
|
2.6
|
75.8
|
81.6
|
86.7
|
16663
|
18638
|
21936
|
|
3 x 2.5 + 2 x 1.5
|
0.8 I 0.8
|
12.6
|
15.4
|
17.1
|
244
|
392
|
600
|
|
3 x 2.5* + 2 x 1.5*
|
0.8 I 0.8
|
13.2
|
16.0
|
17.7
|
256
|
410
|
628
|
|
3x4 + 2x 2.5
|
1.0 /0.8
|
14.4
|
17.6
|
18.9
|
339
|
525
|
757
|
|
3x4*+2x2.5
|
1.0 I 0.8
|
15.2
|
18.4
|
19.7
|
353
|
549
|
793
|
|
3×6 + 2 ×4
|
1.0 I 0.8
|
16.2
|
19.4
|
21.4
|
452
|
660
|
1032
|
|
3×6 ＋2x 4
|
1.0 I 1.0
|
17.1
|
20.3
|
22.3
|
468
|
687
|
1080
|
|
3×10 + 2 x 6
|
1.0 I 1.0
|
19.5
|
22.7
|
24.7
|
676
|
928
|
1368
|
|
3×16 + 2 ×10
|
1.0 I 1.0
|
22.6
|
25.8
|
27.8
|
967
|
1253
|
1769
|
|
3×25+2x 16
|
1.2/ 1.0
|
26.5
|
29.7
|
31.9
|
1441
|
1775
|
2394
|
|
3×35+2x 16
|
1.2/ 1.0
|
28.4
|
31.8
|
34.0
|
1749
|
2119
|
2781
|
|
3×50 + 2x 25
|
1.4I 1.2
|
32.0
|
35.4
|
39.0
|
2399
|
2814
|
3840
|
|
3x70 + 2x35
|
1.4 I 1.2
|
36.3
|
40.9
|
43 .1
|
3236
|
4094
|
4838
|
|
3x95 + 2x50
|
1.6 I 1.4
|
41 0
|
46.0
|
49.4
|
4302
|
5304
|
6560
|
|
3x 120 + 2x 70
|
1.6 I 1.4
|
45.5
|
50.5
|
53.7
|
5498
|
6610
|
7978
|
|
3x 150 + 2 x 70
|
1.8/ 1.4
|
49.0
|
54.0
|
57.4
|
6467
|
7660
|
9149
|
|
3x 185 + 2x95
|
2.0 I 1.6
|
54.7
|
59.9
|
63.5
|
8147
|
9500
|
11172
|
|
3 x 240 + 2 x 120
|
2.2 /1.6
|
61 0
|
66.4
|
69.8
|
10340
|
11876
|
13718
|
|
4 ×2.5 + 1 ×1.5
|
0.8 I 0.8
|
12.8
|
15.6
|
17.3
|
254
|
404
|
615
|
|
4 ×2.5* + 1×1.5*
|
0.8 /0.8
|
13.4
|
16.2
|
17.9
|
266
|
424
|
646
|
|
4 ×4 + 1×2.5
|
1.0 /0.8
|
14.9
|
18.1
|
19.4
|
357
|
549
|
789
|
|
4 ×4 *+1 x2.5*
|
1.0 I 0.8
|
15.7
|
18.9
|
20.2
|
372
|
574
|
826
|
|
4 ×6 + 1x4
|
1.0 /0.8
|
16.5
|
19.7
|
21.7
|
474
|
685
|
1064
|
|
4 ×6• +1 x4*
|
1.0 I 1.0
|
17.4
|
20.6
|
22.6
|
490
|
714
|
1113
|
|
4 ×10 + 1 x6
|
1.0/ 1.0
|
20.2
|
23.4
|
25.4
|
717
|
975
|
1435
|
|
4x16 + 1 x 10
|
1.0 I 1.0
|
23.1
|
26.3
|
28.3
|
1042
|
1334
|
1863
|
|
4x25 + 1 x 16
|
1.2 I 1.0
|
27.4
|
30.6
|
32.8
|
1532
|
1877
|
2518
|
|
4x35 + 1 x 16
|
1.2 I 1.0
|
29.9
|
33.3
|
36.3
|
1939
|
2328
|
3261
|
|
4x50 + 1 x25
|
1.4 I 1.2
|
33.3
|
36.5
|
40. 1
|
2686
|
3101
|
4162
|
|
4x 70 + 1 x35
|
1.4 I 1.2
|
378
|
42.4
|
44.6
|
3626
|
4517
|
5290
|
|
4x95 + 1 x50
|
1.6 I 1.4
|
432
|
48.0
|
51.6
|
4852
|
5883
|
7224
|
|
4 ×120 + 1×70
|
1.6/ 1.4
|
47.6
|
52.6
|
55.8
|
6077
|
7236
|
8661
|
|
4 ×150 + 1×70
|
1.8/ 1.4
|
52.1
|
57.3
|
60.9
|
7317
|
8611
|
10208
|
|
4 ×185 + 1×95
|
2.0 I 1.6
|
57.8
|
63.2
|
66.6
|
9097
|
10554
|
12305
|
|
4 ×240 + 1×120
|
2.2 /1.6
|
64.8
|
70.4
|
74.9
|
11626
|
13287
|
16040
|
|
5 x 2.5
|
0.8
|
13.0
|
15.8
|
17.5
|
269
|
422
|
636
|
|
5 ×2.5*
|
0.8
|
13.7
|
16.5
|
18.2
|
283
|
444
|
670
|
|
5 x 4
|
1.0
|
15.4
|
18.6
|
19.9
|
383
|
582
|
828
|
注Note：
1、*表示7股导体绞合 。
*Mean 7-stranded conductor.
2、单芯铠装不建议采用。
The single core armored not recommended.
3、上述规格型号的产品也可采用聚乙烯护套,型号为VY、VY23 、VY33 分别对应VV 、VV22 、VV32
Above product sheath can be changed to PE sheath, type of VY、VY23 、VY33 is corresponding to VV 、VV22 、VV32
