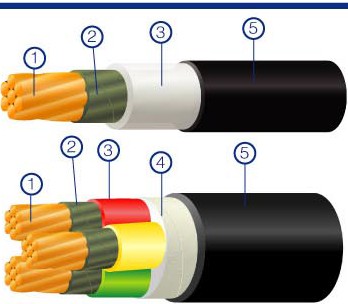

1.Conductor 2.Flame-retardant coating 3.Insulation 4. Fill tape 5.outer sheath
1、Standard: GB/T 19666.
2、Application:Widely used in high-rise buildings, subways, tunnels, petrochemical industry, power stations and important industrial and mining enterprises and other important place closely related to fire safety and fire rescue.
3、Characteristic:Fire-resistant cables is able to guarantee the normal operation of cable wire and cable in a certain period of time under burning case。Compared with conventional cable or flame retardant cable, the main difference is that when fire occurs, fire-resistant cable still can transmit electrical energy,in order to evacuate people and rescue important facilities。This product will not breakdown in the situatio of 750-800 ℃ flame of applying rated voltage for 90 minutes .
5、型号规格Type and Specification
5.1、一般类耐火产品General class of Fire-resistant products
NH |
0.6/1kV及以下交联聚乙烯绝缘耐火电力电缆 Up to 0.6/1kV XLPE insulated Fire-resistant power cable
|
0.6/1kV及以下聚氯乙烯绝缘耐火电力电缆 Up to 0.6/1kV PVC insulated Fire-resistant power cable
|
聚氯乙烯绝缘耐火控制电缆 PVC insulated Fire-resistant control cable |
交联聚乙烯绝缘耐火控制电缆 XLPE insulated Fire-resistant control cable |
聚氯乙烯绝缘耐火电线 PVC insulated Fire-resistant wire |
YJV |
VV |
KVV |
KYJV |
BV |
|
YJV22 |
VV22 |
KVVP |
KYJVP |
BVR |
|
YJV32 |
VV32 |
KVV22 |
KYJV22 |
RV |
|
|
|
KVVR |
|
|
|
|
|
KVVRP |
|
|
5.2、阻燃类耐火类产品Flame retardant type and Fire-resistant type products
ZAN ZBN ZCN |
阻燃0.6/1kV及以下交联聚乙烯绝缘电力电缆 Flame retardant up to 0.6/1kV XLPE insulated power cable
|
阻燃0.6/1kV及以下聚氯乙烯绝缘电力电缆 Flame retardant up to 0.6/1kV PVC insulated power cable |
阻燃聚氯乙烯绝缘控制电缆 Flame retardant PVC insulated control cable |
阻燃交联聚乙烯绝缘控制电缆 Flame retardant XLPE insulated control cable |
阻燃聚氯乙烯绝缘电线 Flame retardant PVC insulated wire |
YJV |
VV |
KVV |
KYJV |
BV |
|
YJV22 |
VV22 |
KVVP |
KYJVP |
BVR |
|
YJV32 |
VV32 |
KVV22 |
KYJV22 |
RV |
|
|
|
KVVR |
|
|
|
|
|
KVVRP |
|
|
5.3、无卤低烟耐火类产品Low smoke halogen-free fire-resisting products
WDZAN WDZBN WDZCN |
0.6/1kV及以下交联聚乙烯绝缘无卤低烟阻燃电力电缆 Up to 0.6/1kV XLPE insulated Low smoke halogen-free power cable
|
交联聚乙烯绝缘无卤低烟阻燃控制电缆 XLPE insulated Low smoke halogen-free control cable |
无卤低烟阻燃电线 XLPE insulated Low smoke halogen-free wire |
YJY |
KYJY |
BY |
|
YJY23 |
KYJYP |
BYJ(F) |
|
YJY33 |
KYJY23 |
RY |
|
|
KYJY33 |
RYJ(F) |
