Radiation cross-linked polyolefin insulated wire (

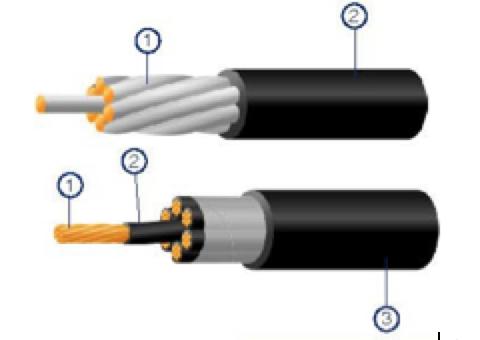

1 conductor  2 insulation 3 sheath

  Standard: Q/TEOR 30

  用途：主要适用于额定电压  0.6/1kV及以下，用于工作温度高、耐磨、耐油以及要求柔软的使用场合。

Application: mainly applicable to the rated voltage up to 0.6/1kV, for high working temperature, abrasion resistance, oil resistance and soft occasions.

特点：1. 电气、绝缘性能稳定；

characteristic:1.electrical insulating properties, stability;

2. 耐温等级高，载流量大，过载保护性能强；

  2.High temperature resistance level, large carrying capacity,

 strong overload protection performance;

3. 具有无卤、低烟、低毒环保等特性；

3.no halogen, low smoke, low toxicity and environmental protection

 etc.;

4. 电缆燃烧透光率较高；优异的阻燃性能，可通过单根 垂直燃烧试验；

 4. High light transmittance when burning; excellent flame retardant performance, can be through a single vertical burning test;

5. 机械性能提高，耐刮、耐磨性、可弯曲性能好。

 5. Improved mechanical properties, scratch resistance,

abrasion resistance, good bending performance.

6. 产品耐油、耐溶剂性好。

 6. Excellent performance of oil resistance, solvent resistance.

电压等级：绝缘电线：450/750V 或300/500V

Voltage:Insulated wire: 450/750V or 300/500V

控制电缆：450/750V

Control cable: 450/750V

电力电缆：0.6/1kV



Power cable: 0.6/1kV

型号及规格

Type and specification

1绝缘电线 Insulated wire



型 号 Type	芯数 Number of Cores	电压 Voltage	标称截面mm2 Nominal cross section
BYJ(F)- x  x WD-ZR-NH-BYJ(F) WD-ZR-BYJ(F)	1	450/750V	0.5-240
WDZ(A 、B、C)-RYJ(F)
WDZ(A 、B、C)-RYJ(F)	1、2、3、 4、5	300/500V	0.75-240



2电力电缆：0.6/1kV

2 Power cable:0.6/1kV





型号Type	芯数cores number
WD-ZR-NH-YJ(F)Y WD-ZA-YJ(F)Y	1	2	3	3+1	4	3+2	4+1	5
	1.5~300
