XLPE insulated control cable

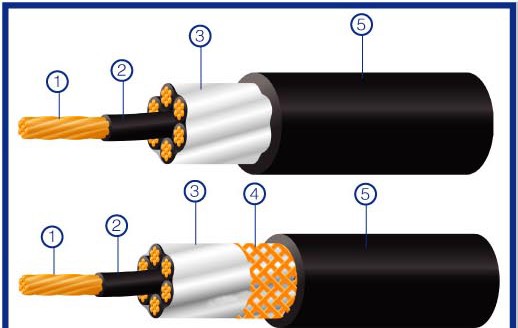

1.conductor 2.insulation 3.belting 4.copper wire braid 5. sheath
标准：参照GB/T 9330.3
Standard: Refer to GB/T 9330.3
用途：适用于交流额定电压 450/750V( Uo/U）或直流1000V及以下控制、监控回路及保护线路等场合
Application: suitable for AC rated voltage 450/750V ( Uo/U ) or DC up to 1000V control, monitoring and protection of the loop line.
使用特性Characteristics：
1. 额定电压Uo/U为450/750V
1 Rated voltage Uo/U is 450/750V
2.电缆导体的长期允许工作温度为90℃
Cable conductor allowable long-time working temperature: 90 ℃
3.电缆的敷设温度不低于0℃
Cable laying temperature no lower than 0℃
4.电缆推荐的允许最小半径：
The recommended minimum radius of cable
无铠装层的电缆，应不小于电缆外径的6倍
Non - armoured cable, no less than 6 times of cable diameter
有铠装或铜带屏蔽结构的电缆，应不小于电缆外径的12倍
Cable with armored or copper tape shielding structure, should be no less than 12 times of cable diameter
有屏蔽层结构的软电缆，应不小于电缆外径的6倍。
Shielded flexible cable, not less than 6 times of cable diameter.
型号Type
|
型 号 Type |
名 称 Description |
主 要 使 用 场 合 The main applications |
|
KYJV |
铜芯交联聚乙烯绝缘聚氯乙烯护套控制电缆 Copper conductor XLPE insulated PVC sheathed control cable |
敷设在室内、电缆沟、管道等固定场合 For laying in fixed installation in indoors, cable trench, pipeline etc. |
|
KYJVR |
铜芯交联聚乙烯绝缘聚氯乙烯护套软结构控制电缆 Copper conductor XLPE insulated PVC sheathed soft control cable |
敷设在室内、电缆沟、管道等要求柔软场合 For laying in situations required soft in indoors, cable trench, pipelines etc. |
|
KYJVRP |
铜芯交联聚乙烯绝缘聚氯乙烯护套软结构屏蔽控制电缆 Copper conductor XLPE insulated PVC sheathed soft control cable shielding structure |
敷设在室内、电缆沟、管道等要求柔软屏蔽场合 For laying in situations required soft and shielding in indoors, cable trench, pipelines etc. |
|
KYJVP |
铜芯交联聚乙烯绝缘聚氯乙烯护套编织屏蔽控制电缆 Copper conductor XLPE insulated PVC sheathed braiding shielding control cable |
敷设在室内、电缆沟、管道等要求屏蔽固定场合 For laying in fixed places with shielding requirement in indoors, in cable trench, pipelines etc. |
|
KYJVP2 |
铜芯交联聚乙烯绝缘聚氯乙烯护套铜带屏蔽控制电缆 Copper conductor XLPE insulated PVC sheathed copper tape screened control cable |
敷设在室内、电缆沟、管道等要求屏蔽固定场合 For laying in fixed places with shielding requirement in indoors, in cable trench, pipelines etc. |
|
KYJV22 |
铜芯交联聚乙烯绝缘聚氯乙烯护套钢带铠装控制电缆 Copper conductor XLPE insulated PVC sheathed steel tape armored control cable |
敷设在室内、电缆沟、管道等能承受较大机械外力的固定场合 For laying in fixed places bearing great mechanical force in indoor, cable trench, pipeline etc. |
|
注：阻燃型电缆在所列电缆型号前加“ZR-，ZB-，ZC-或ZD-”，用户不提出具体要求时，“ZR-或Z-”均表示为C类阻燃，若电缆外径不大于12mm，则表示为D类阻燃。 Note: If flame retardant cable, adding "ZR-, ZB-, ZC- or ZD- " before cable type, if the user does not forward specific requirements, " ZR- or Z- " means class C flame retardant, if cable diameter no more than 12mm, it means class D flame retardant. |
||
规格specification
|
型 号 Type
标称截面mm2 Nominal cross section mm2 |
KYJV KYJVR |
KYJVP KYJVRP |
KYJP2 |
KYJV22 |
|
0.75 |
2~61 |
2~61 |
4~61 |
4~61 |
|
1.0 |
||||
|
1.5 |
||||
|
2.5 |
||||
|
4 |
2~14 |
4~14 |
4~14 |
|
|
6 |
||||
|
10 |
2~10 |
4~10 |
4~10 |
注：推荐芯数系列为2，3，4，5，7，8，10，12，14，16，19，24，27，30，37，44，48，52，61
Note: Recommended core number series ：2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61
规格和结构尺寸 Specification and dimension
|
规 格 Specification |
KYJV |
KYJV22 |
KYJVP |
KYJVP2 |
||||
|
外径outer diameter mm |
重量weight kg/km |
外径outer diameter mm |
重量weight kg/km |
外径outer diameter mm |
重量weight kg/km |
外径outer diameter mm |
重量weight kg/km |
|
|
2×0.75 |
6.5 |
52.1 |
- |
- |
7.4 |
78.4 |
- |
- |
|
2×1.0 |
6.8 |
59.8 |
- |
- |
7.7 |
87.5 |
- |
- |
|
2×1.5 |
7.7 |
78.3 |
- |
- |
8.6 |
110.3 |
- |
- |
|
2×2.5 |
8.9 |
109.5 |
- |
- |
9.8 |
147.11 |
- |
- |
|
2×4 |
9.9 |
147.0 |
- |
- |
11.6 |
217.2 |
- |
- |
|
2×6 |
10.9 |
196.8 |
- |
- |
12.6 |
274.6 |
- |
- |
|
2×10 |
14.1 |
326.1 |
- |
- |
15.2 |
403.9 |
- |
- |
|
3×0.75 |
6.8 |
64.9 |
- |
- |
7.7 |
92.5 |
- |
- |
|
3×1.0 |
7.1 |
76.2 |
- |
- |
8.0 |
105.6 |
- |
- |
|
3×1.5 |
8.1 |
100.2 |
- |
- |
9.0 |
134.0 |
- |
- |
|
3×2.5 |
9.5 |
144.8 |
- |
- |
10.3 |
184.7 |
- |
- |
|
3×4 |
10.4 |
198.0 |
- |
- |
12.1 |
272.4 |
- |
- |
|
3×6 |
12.1 |
286.2 |
- |
- |
13.2 |
352.8 |
- |
- |
|
3×10 |
14.9 |
442.1 |
- |
- |
16.0 |
525.0 |
- |
|
|
4×0.75 |
7.3 |
- |
- |
- |
8.2 |
108.6 |
8.0 |
105.3 |
|
4×1.0 |
7.7 |
- |
- |
- |
8.6 |
124.9 |
8.4 |
121.5 |
|
4×1.5 |
8.9 |
- |
- |
- |
9.7 |
160.8 |
9.54 |
157.2 |
|
4×2.5 |
10.2 |
181.4 |
13.8 |
343.2 |
11.9 |
254.5 |
11.5 |
236.9 |
|
4×4 |
12.0 |
267.4 |
15.0 |
429.0 |
13.1 |
332.6 |
12.7 |
313.3 |
|
4×6 |
13.2 |
374.8 |
16.2 |
541.1 |
14.3 |
436.4 |
13.9 |
415.1 |
|
4×10 |
16.3 |
557.6 |
19.7 |
793.1 |
17.8 |
665.5 |
17.4 |
638.8 |
|
5×0.75 |
7.9 |
86.9 |
- |
- |
8.8 |
119.9 |
8.6 |
116.6 |
|
5×1.0 |
8.3 |
106.1 |
- |
- |
9.2 |
140.5 |
9.0 |
137.3 |
|
5×1.5 |
9.5 |
143.3 |
- |
- |
10.4 |
183.8 |
10.8 |
194.7 |
|
5×2.5 |
11.7 |
227.2 |
14.7 |
386.0 |
12.8 |
291.1 |
12.4 |
272.1 |
|
5×4 |
13.0 |
315.6 |
16.0 |
490.6 |
14.1 |
387.1 |
13.7 |
366.1 |
|
5×6 |
14.4 |
431.4 |
17.8 |
640.4 |
15.5 |
511.2 |
15.1 |
488.0 |
|
5×10 |
18.3 |
697.8 |
21.3 |
937.9 |
19.4 |
799.7 |
18.9 |
770.5 |
|
7×0.75 |
8.5 |
110.0 |
12.1 |
246.7 |
9.4 |
145.5 |
9.2 |
142.0 |
|
7×1.0 |
8.9 |
132.9 |
12.5 |
276.4 |
9.8 |
170.7 |
9.6 |
167.0 |
|
7×1.5 |
10.3 |
183.3 |
13.9 |
346.0 |
11.8 |
243.4 |
11.6 |
239.2 |
|
7×2.5 |
12.7 |
291.6 |
15.7 |
463.2 |
13.8 |
361.9 |
13.4 |
341.4 |
|
7×4 |
14.1 |
412.8 |
17.1 |
601.8 |
15.2 |
490.9 |
14.8 |
468.1 |
|
7×6 |
15.6 |
570.7 |
19.0 |
796.9 |
16.7 |
658.0 |
16.3 |
632.7 |
|
7×10 |
19.9 |
923.9 |
22.9 |
1180.0 |
21.0 |
1035.7 |
20.6 |
1003.9 |
|
8×0.75 |
9.1 |
123.2 |
12.7 |
268.2 |
10.0 |
161.5 |
10.4 |
171.8 |
|
8×1.0 |
11.7 |
149.2 |
13.2 |
301.8 |
11.1 |
205.0 |
10.9 |
201.0 |
|
8×1.5 |
13.5 |
221.9 |
14.7 |
380.1 |
12.8 |
285.7 |
12.4 |
266.9 |
|
8×2.5 |
15.9 |
329.4 |
16.6 |
512.5 |
14.7 |
407.8 |
14.4 |
382.7 |
|
8×4 |
18.2 |
466.7 |
18.6 |
687.4 |
16.7 |
632.9 |
16.3 |
542.0 |
|
8×6 |
20.2 |
662.7 |
20.3 |
890.1 |
18.4 |
758.6 |
18.0 |
731.0 |
|
8×10 |
25.4 |
1045.0 |
24.5 |
1327.1 |
22.8 |
1194.4 |
22.2 |
1132.0 |
|
10×0.75 |
10.5 |
152.5 |
14.1 |
317.2 |
12.1 |
227.1 |
11.7 |
209.4 |
|
10×1.0 |
11.7 |
181.2 |
14.7 |
358.7 |
12.8 |
264.2 |
12.4 |
245.2 |
|
10×1.5 |
13.5 |
275.7 |
16.5 |
456.6 |
14.6 |
349.9 |
14.3 |
328.7 |
|
10×2.5 |
15.9 |
409.8 |
19.3 |
639.3 |
17.0 |
498.8 |
17.0 |
488.6 |
|
10×4 |
18.2 |
598.0 |
21.2 |
836.6 |
19.3 |
696.3 |
18.9 |
670.2 |
|
10×6 |
20.2 |
825.9 |
23.2 |
1090.7 |
21.5 |
965.4 |
20.9 |
907.2 |
|
10×10 |
25.4 |
1307.9 |
29.0 |
1710.7 |
26.7 |
1485.6 |
26.1 |
1412.2 |
|
12×0.75 |
11.3 |
189.9 |
14.3 |
344.0 |
12.4 |
257.8 |
12.0 |
233.5 |
|
12×1.0 |
12.0 |
230.4 |
15.0 |
392.5 |
13.1 |
295.8 |
12.7 |
276.4 |
|
12×1.5 |
13.9 |
316.9 |
16.9 |
502.9 |
15.0 |
393.6 |
14.8 |
371.2 |
|
12×2.5 |
16.4 |
476.0 |
19.8 |
712.5 |
17.9 |
584.5 |
17.5 |
557.7 |
|
12×4 |
18.7 |
696.7 |
21.7 |
942.6 |
19.8 |
801.3 |
19.4 |
771.4 |
|
12×6 |
20.9 |
978.5 |
23.9 |
1251.5 |
22.1 |
1122.7 |
21.5 |
1062.5 |
|
14×0.75 |
11.9 |
214.1 |
14.9 |
374.3 |
13.8 |
278.6 |
12.6 |
259.4 |
|
14×1.0 |
12.6 |
260.5 |
15.6 |
429.6 |
13.7 |
329.2 |
13.3 |
308.9 |
|
14×1.5 |
14.5 |
359.9 |
17.9 |
571.1 |
15.6 |
440.7 |
15.2 |
417.2 |
|
14×2.5 |
17.2 |
544.1 |
20.6 |
791.8 |
18.7 |
658.2 |
18.3 |
630.0 |
|
14×4 |
19.7 |
798.1 |
22.7 |
1055.8 |
20.8 |
908.2 |
20.4 |
876.7 |
|
14×6 |
21.9 |
1113.3 |
24.9 |
1400.0 |
23.2 |
1265.5 |
22.6 |
1202.2 |
|
16×0.75 |
12.4 |
234.7 |
15.4 |
402.0 |
13.5 |
302.6 |
13.1 |
282.5 |
|
16×1.0 |
13.2 |
443.0 |
16.2 |
463.5 |
14.3 |
358.9 |
13.9 |
337.6 |
|
16×1.5 |
15.3 |
399.1 |
18.7 |
620.5 |
16.4 |
484.3 |
16.0 |
459.6 |
|
16×2.5 |
18.5 |
622.4 |
21.5 |
865.5 |
19.6 |
725.7 |
19.2 |
696.1 |
|
19×0.75 |
13.0 |
266.9 |
16.0 |
441.8 |
14.1 |
338.3 |
13.7 |
317.3 |
|
19×1.0 |
13.8 |
327.1 |
17.2 |
528.1 |
14.9 |
403.4 |
14.5 |
381.1 |
|
19×1.5 |
16.1 |
458.7 |
19.5 |
690.7 |
17.6 |
564.8 |
17.2 |
538.5 |
|
19×2.5 |
19.5 |
718.4 |
22.5 |
973.7 |
20.6 |
827.5 |
20.2 |
796.4 |
|
24×0.75 |
15.0 |
331.4 |
18.4 |
548.6 |
16.1 |
414.8 |
15.7 |
390.6 |
|
24×1.0 |
15.9 |
407.1 |
19.3 |
637.4 |
17.4 |
512.3 |
17.0 |
486.2 |
|
24×1.5 |
19.0 |
591.0 |
22.0 |
841.4 |
20.1 |
697.5 |
19.7 |
667.1 |
|
24×2.5 |
22.6 |
899.1 |
25.6 |
1195.2 |
23.9 |
1056.6 |
23.3 |
991.2 |
|
27×0.75 |
15.3 |
363.9 |
18.7 |
585.2 |
16.4 |
449.1 |
16.4 |
439.5 |
|
27×1.0 |
16.3 |
449.1 |
19.7 |
684.0 |
17.8 |
556.6 |
17.4 |
530.0 |
|
27×1.5 |
19.4 |
651.0 |
22.4 |
906.8 |
20.5 |
759.9 |
20.1 |
728.8 |
|
27×2.5 |
23.1 |
995.9 |
26.1 |
1298.3 |
24.4 |
1157.1 |
23.8 |
1090.2 |
|
30×0.75 |
15.8 |
398.2 |
19.2 |
625.9 |
17.3 |
501.8 |
16.9 |
475.9 |
|
30×1.0 |
17.2 |
509.7 |
20.2 |
734.1 |
18.3 |
603.0 |
17.9 |
575.5 |
|
30×1.5 |
20.1 |
713.2 |
23.1 |
976.8 |
21.4 |
951.9 |
20.8 |
794.0 |
|
30×2.5 |
24.0 |
1094.6 |
27.0 |
1407.6 |
25.3 |
1261.9 |
24.7 |
1192.6 |
|
37×0.75 |
17.3 |
485.2 |
20.3 |
713.4 |
18.4 |
581.5 |
18.0 |
553.8 |
|
37×1.0 |
18.5 |
600.2 |
21.5 |
842.8 |
19.6 |
703.3 |
19.2 |
673.8 |
|
37×1.5 |
21.6 |
850.4 |
24.6 |
1133.4 |
22.9 |
1000.3 |
22.3 |
937.9 |
|
37×2.5 |
25.8 |
1202.8 |
30.6 |
2001.9 |
27.7 |
1532.2 |
27.1 |
1456.5 |
|
44×0.75 |
19.3 |
570.8 |
22.3 |
824.3 |
20.6 |
704.0 |
20.0 |
648.6 |
|
44×1.0 |
20.6 |
707.2 |
23.6 |
977.1 |
21.9 |
849.6 |
21.3 |
790.3 |
|
44×1.5 |
24.2 |
1004.4 |
27.8 |
1359.0 |
25.4 |
1173.5 |
24.9 |
1103.3 |
|
44×2.5 |
29.6 |
1594.4 |
34.2 |
2356.2 |
31.1 |
1839.3 |
30.3 |
1715.7 |
|
48×0.75 |
19.6 |
613.2 |
22.6 |
870.5 |
20.9 |
748.3 |
20.3 |
691.9 |
|
48×1.0 |
20.9 |
772.9 |
23.9 |
1047.0 |
22.2 |
906.7 |
21.6 |
846.4 |
|
48×1.5 |
24.6 |
899.4 |
29.4 |
1740.1 |
25.9 |
1245.5 |
25.9 |
1183.2 |
|
48×2.5 |
30.1 |
1721.9 |
34.5 |
2496.1 |
31.6 |
1971.1 |
30.8 |
1845.2 |
|
52×0.75 |
20.1 |
656.8 |
23.3 |
920.8 |
21.4 |
795.8 |
20.8 |
737.3 |
|
52×1.0 |
21.5 |
817.4 |
24.8 |
1097.9 |
22.8 |
966.3 |
22.2 |
908.8 |
|
52×1.5 |
25.3 |
1163.6 |
30.1 |
1838.5 |
27.2 |
1378.2 |
26.6 |
1309.4 |
|
52×2.5 |
30.9 |
1851.8 |
35.5 |
2647.0 |
32.8 |
2138.7 |
32.0 |
2075.0 |
|
61×0.75 |
21.3 |
758.1 |
24.3 |
1036.9 |
22.6 |
905.6 |
22.0 |
876.5 |
|
61×1.0 |
22.7 |
935.0 |
25.7 |
1232.3 |
24.0 |
1093.2 |
23.4 |
1017.9 |
|
61×1.5 |
27.3 |
1375.7 |
31.6 |
2051.6 |
28.7 |
1565.7 |
28.7 |
1497.5 |
|
61×2.5 |
33.2 |
2163.3 |
37.4 |
2974.8 |
34.7 |
2437.5 |
33.9 |
2387.3 |
说明：KYJV、KYJV22、KYJVP在定合同时请注明导体种类，若无注明，我公司均按第1种导体（单根导体）生产供货。
Note: When sign contract, please indicate conductor type of KYJV、KYJV22、KYJVP, if not indicated, our company will produce and delivery according to 1st type conductor(single conductor).
