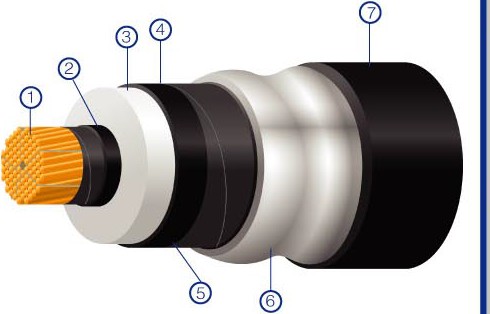

110kV XLPE insulated power cable

 规格:IEC 60840 GB/T 11017,另可按用户技术要求制造

Standard IEC 60840 GB/T 11017also can according to user’s requirements

使用特性:Instruction for applications:

1、额定电压 Uo/U 64/110kV       最高电压Um=126kV

Rated voltage Uo/U 64/110kVmaximum voltage Um=126kV

2、导体长期最高工作温度 90

Conductor maximum long-time working temperature: 90℃

3、短路时(最长持续时间不超过5S),电缆导体最高温度不超过250

When short circuit (the longest duration time: less than 5S ), the conductor temperature: not exceed 250 ℃

4、电缆敷设环境温度不低于0℃,最小弯曲半径≥18D (D为电缆外径)

The minimum temperature of cable laying: 0

The minimum bending radius 18D (D is the cable outer diameter )



 型号及名称Type and Description



型号 type

名称 Description

铜芯Copper core

Aluminumcore

YJLW02

YJLLW02

交联聚乙烯绝缘皱纹铝护套聚氯乙烯护套电力电缆

XLPE insulated corrugated aluminium sheathed PVC sheath power cable





YJLW03

YJLLW03

交联聚乙烯绝缘皱纹铝护套聚乙烯护套电力电缆

XLPE insulated corrugated aluminium sheathed and PE sheathed power cable

YJLW02-Z

YJLLW02-Z

交联聚乙烯绝缘皱纹铝护套聚氯乙烯护套纵向阻水电力电缆

XLPE insulated corrugated aluminium sheathed PVC sheathed longitudinal-block-water power cables

YJLW03-Z



YJLLW03-Z



交联聚乙烯绝缘皱纹铝护套聚乙烯护套纵向阻水电力电缆

XLPE insulated corrugated aluminium sheathed PE sheathed longitudinal-block-water power cables

规格specifications

型号 type

芯数number of Cores

额定电压rated voltage

标称截面nominal cross section (mm2)

YJLW02

YJLW03

YJLLW02

YJLLW03

1

110kV

240.300 .400 .500

630.800 .1000.1200

1400  1600.1800.2000.2500

YJLW02-Z

YJLLW02-Z

YJLW03-Z

YJLLW03-Z
