Fluorine plastic insulated cables

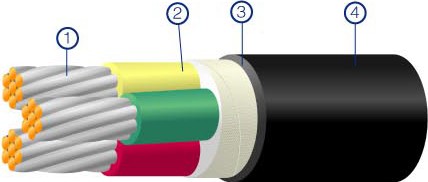

1 conductor 2 insulation 3 filler tape 4 sheath

标准：Q/TEOR21、Q/TEOR22企业标准

Standard: Q/TEOR21、Q/TEOR22 enterprise standard

用途：适用于钢铁、石油、化工、发电、冶金、航空航天等场所，在高温、低温和酸、碱、油、水及腐蚀气体的

恶劣环境中敷设。

Application：Applicable to steel, petroleum, chemical, power, metallurgy, aerospace and other places, laying in high temperature, low temperature and acid, alkali, oil, water and corrosive gas environment.

特点：1. 电缆导体的最高长期使用温度：

characteristic:1. The long-time highest working temperature of cable conductor

聚全氟乙丙烯绝缘 F46: 200℃

F46 insulated: 200℃

2. 电缆适用的最高环境温度：

2.Cable applicable maximum ambient temperature

氟塑料绝缘聚氯乙烯护套电缆105℃

Fluorine plastic insulated PVC sheathed cable: 105℃

氟塑料绝缘硅橡胶护套电缆 180℃

Fluorine plastic insulated silicon rubber sheathed cable :180 ℃

聚全氟乙丙烯护套（ F46 ）电缆200℃

F46 sheathed cable: 200℃

3 电缆弯曲半径不小于电缆外径的 15倍。

3.Cable bending radius: no less than 15 times of cable diameter.

电压等级：电力电缆0.6/ 1kV

控制电缆 450/750V

计算机电缆 300/500V

Voltage: Power cable 0.6/1kv

Control cable 450/750V

Computer cable 300/500V

·型号及名称 Type and Description

型号Type	名称Description
F46F	镀锡（银）铜芯氟塑料绝缘和护套电力电缆 Tinned (silver) copper core fluorine plastic insulated and sheathed power cable
F46G	镀锡（银）铜芯氟塑料绝缘硅橡胶护套电力电缆 Tinned (silver) copper core fluorine plastic insulated silicon rubber sheathed power cable
KF46F	镀锡（银）铜芯氟塑料绝缘和护套控制电缆 Tinned （silver） copper core fluorine plastic insulated and sheathed control cable
KF46G	镀锡（银）铜芯氟塑料绝缘硅橡胶护套控制电缆 Tinned （silver） copper fluorine plastic insulated silicon rubber sheathed control cable
KF46GRP	镀锡（银）铜芯氟塑料绝缘硅橡胶护套镀锡（银）铜丝编织屏蔽控制软电缆 Tinned (silver) copper core fluorine plastic insulated silicon rubber sheathed tin (silver) copper wire woven shield flexible control cable
DJF46FP	镀锡（银）铜芯氟塑料绝缘和护套铜丝编织总屏蔽计算机电缆 Tinned (silver) copper fluorine plastic insulated and sheathed copper wire woven shield computer cable
DJF46PFP	镀锡（银）铜芯氟塑料绝缘和护套铜丝编织分相屏蔽和总屏蔽计算机电缆 Tinned copper (silver) fluorine plastic insulated copper wire woven shield computer cable
注：采用铜带屏蔽，上表相应屏蔽型电缆型号为“P2”；采用铝塑带屏蔽，上表相应屏蔽型电缆型号为“P3 Note: Type“P2”noted in abovetable corresponding to copper strip shielding cable type Type“P3”noted in abovetable corresponding to aluminum tape shielding cable type

规格specification

型号Type

额定电压Rated Voltage（Uo/U）

芯数 number of cores

标称截面 mm2

nominal cross section (mm2)

F46F 、F46FR 、F46G、

F46GR 、F46V 、F46VR

0.6/ 1kV

1、2、3、4、3+1、5、3+2 、4+1

2.5 、4、6、10、

16、25 、35 、50

KF46F 、KF46FR、KF46FP 、KF46FRP、KF46G 、KF46GR 、KF46G P、KF46G R P、KF46V 、 KF46V R

450/750V

2～61

0.5～10

DJF46FP、DJF46PFP 、

DJF46VFP、DJF46PVFP

300/5OOV

2～48

0.5～2.5

注：以上规格包括阻燃型。

Note: The above specifications include flame retardant type.
