Explosion-proof intrinsically safe cable

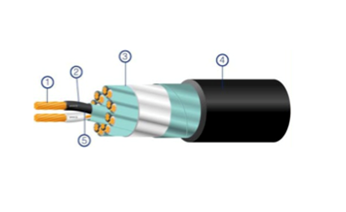

1.conductor 2.insulation 3.shield 4.sheath 5.pair twist

标准::Q/TEOR31 企业标准

     Standard: Q/TEOR31 enterprise standard

用途: 主要用于有防爆要求场合的集散系统和自动化检测系 统中作传输线,防爆安全性能明显高于 一般控制电缆 及计算机电缆。

       Application: Mainly used for transmission line with distributed system and automatic detection system and explosion-proof requirements of the occasion, Explosion-proof safety performance is significantly higher than that of normal control cable and computer cable.

特点:1.  电缆导体最高工作温度:

     Characteristic: 1. The highest working temperature of cable conductor

聚乙烯绝缘及聚氯乙烯绝缘不超过70℃。

PE insulation and PVC insulation does not exceed 70

交联聚乙烯绝缘不超过90℃。

XLPE insulation does not exceed 70

2. 电缆安装敷设温度:

2.The installation laying temperature of cable

聚氯乙烯护套不低于0℃。

PVC sheath is not lower than 0 ℃

3. 电缆允许弯曲半径:

3. Cable allowable bending radius:

非铠装电缆最小为电缆外径的6倍;

Unarmored cable: minimum of 6 times of the cable diameter

铜带屏蔽或钢带铠装电缆最小为电缆外径的12倍。

Copper tape shielding or steel tape armored cable:

minimum of 12 times of the cable diameter

电压等级:450/750V 及以下

        Voltage: Up to 450/750V

型号及名称Type and Description

型号

Type



名称

Description

IAYP3VP3

聚乙烯绝缘聚氯乙烯护套铝塑复合带分屏蔽与总屏蔽本安电缆

PE insulation PVC sheath AL-Polyester individual & overall screen safe cable

IAVP3VP3

聚氯乙烯绝缘聚氯乙烯护套铝塑复合带分屏蔽与总屏蔽本安电缆

PVC insulation & sheath AL-Polyester individual & overall screen safe cable

IAYJP3VP3

交联聚乙烯绝缘聚氯乙烯护套铝塑复合带分屏蔽与总屏蔽本安电缆

XLPE insulation PVC sheath AL-Polyester individual & overall screen cable

规格specification

对数pair number

标称截面mm2 nominal cross section

248

0.5 0.75 1.01.5 2.5
